Customizable 7-Inch TPV070 TFT Display for Real-Time Crypto Monitoring with ESP32

 Tips:Click on the image to enlarge

TPV070规格书.zip

TPV070-宣传册.zip

 Model: TPV070

Features

image.png  7-inch TFT LCD display

image.png The data is accurate

image.png Real-time update

image.png Display multiple currencies

    (BTC,ETH,SOL,XRP,DOGE,AAVE,LINK)

image.png  Luminance 600 cd/cm2

image.png Support historical curve viewing

image.png Reliability and stable performance

image.png Strikes abalance between portability and

    usabilit usability

Specifications

Display
Display Type7.0 Inch
TypeTFT
Resolution800x480
Viewing angleALL
Dimensions(WxHxD)165x100x3.5mm
Activearea153.84(H)×85.632(V)
I/O PortsUSBUSB2.0x1

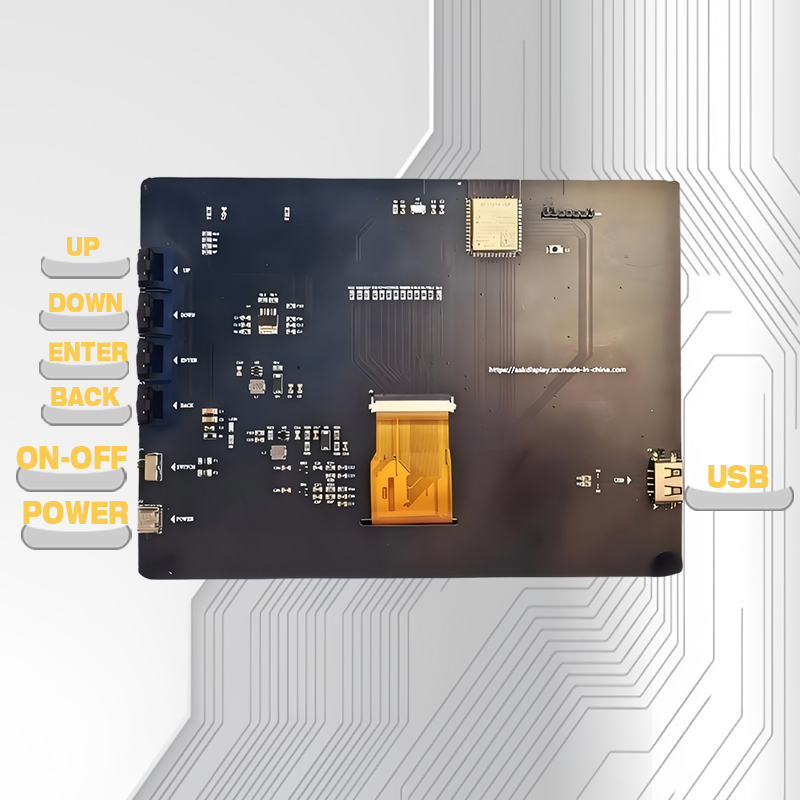

ButtonUpMove upward
DownMove downward
EnterConfirm function
BackReturn to the previous
DC CharacteristicsPower supplyDC 5V
white LED voltageDC 9V(IF=180mA)
Luminance600 cd/cm2(IF=180mA)
EnvironmentWorking Temp-20°C~70°C
Storage Temp-30℃~80℃

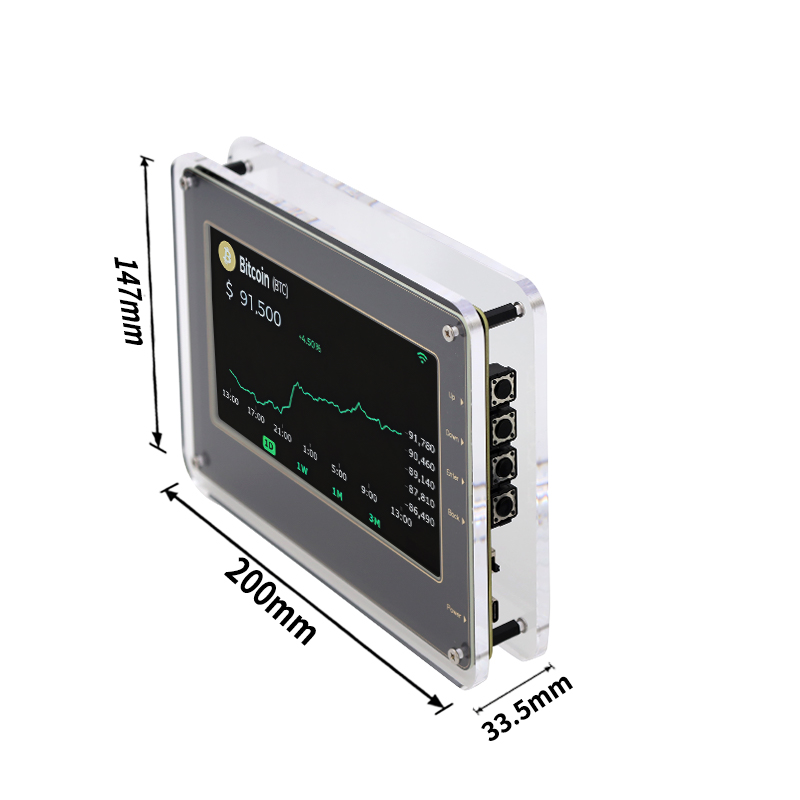

Physical CharacteristicsMachine size(mm)200x147x33.5mm
Gross weight(g)1293.2g
Packagesize(Mailbox)280x200x70mm

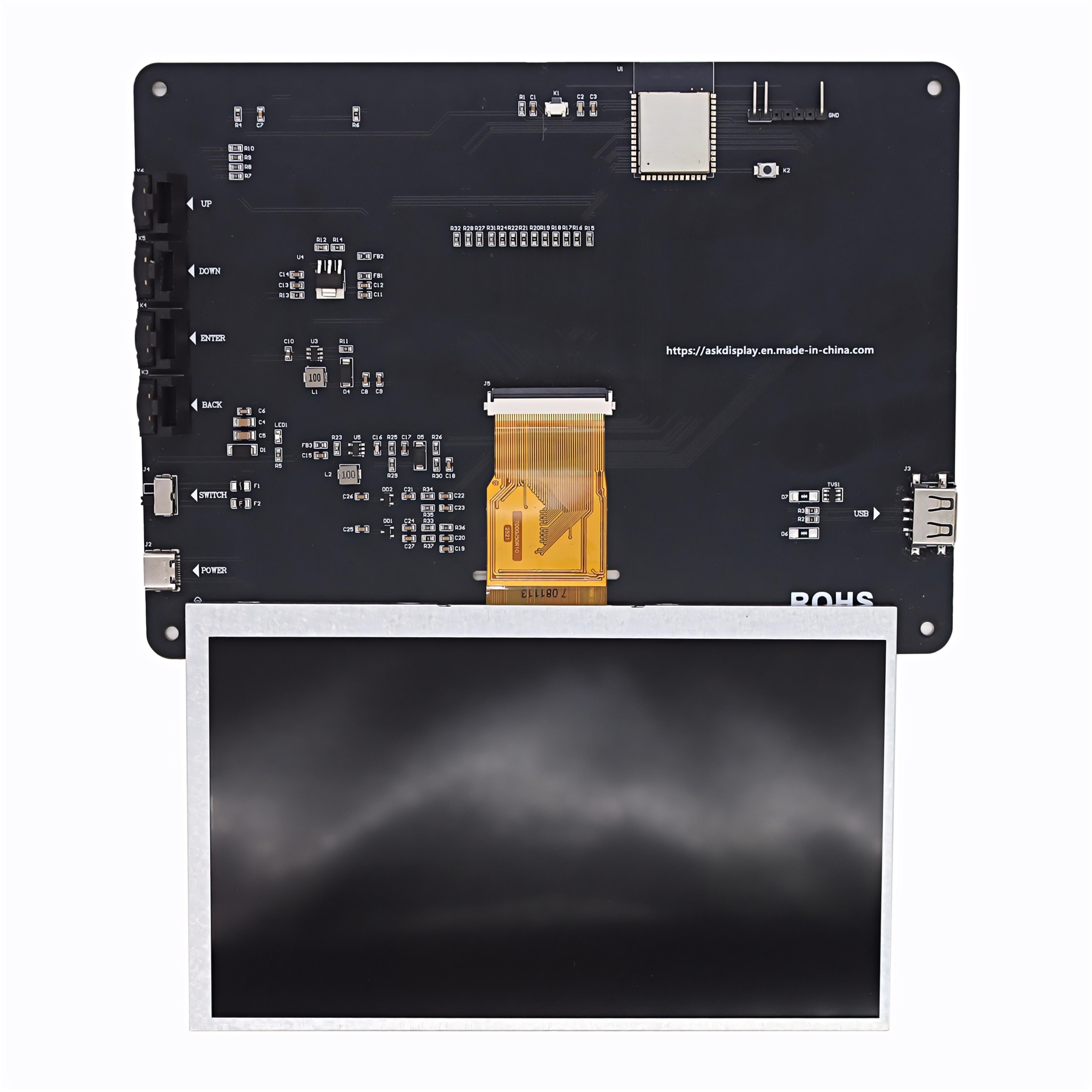

033A7068 拷贝 2.jpg
