7.5 Inch Eink EPLB075 Smart Crypto Monitor with ESP32 and Battery Backup, tilt-style Customizable

 Tips:Click on the image to enlarge

EPLB075规格书.zip

EPLB075-宣传册.zip

Model: EPLB075

Features

image.png  7.5-inch Black and white E-Ink display

image.png Wide Viewing Angle

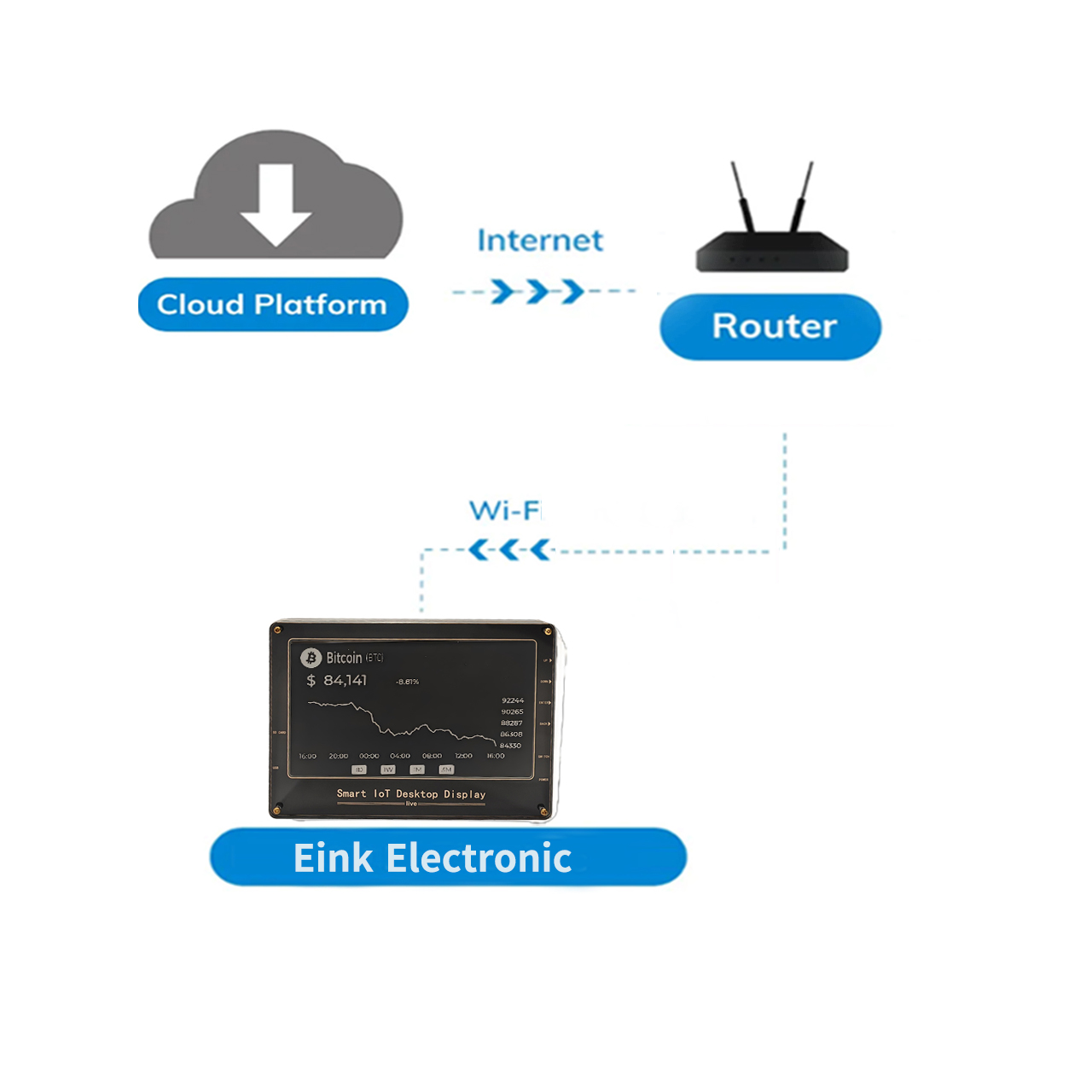

image.png Real-time update

image.png Display multiple currencies

    (BTC,ETH,SOL,XRP,DOGE,AAVE,LINK)

image.png  Energy Optimization

image.png Support historical curve viewing

image.png Reliability and stable performance

image.png Large capacity battery

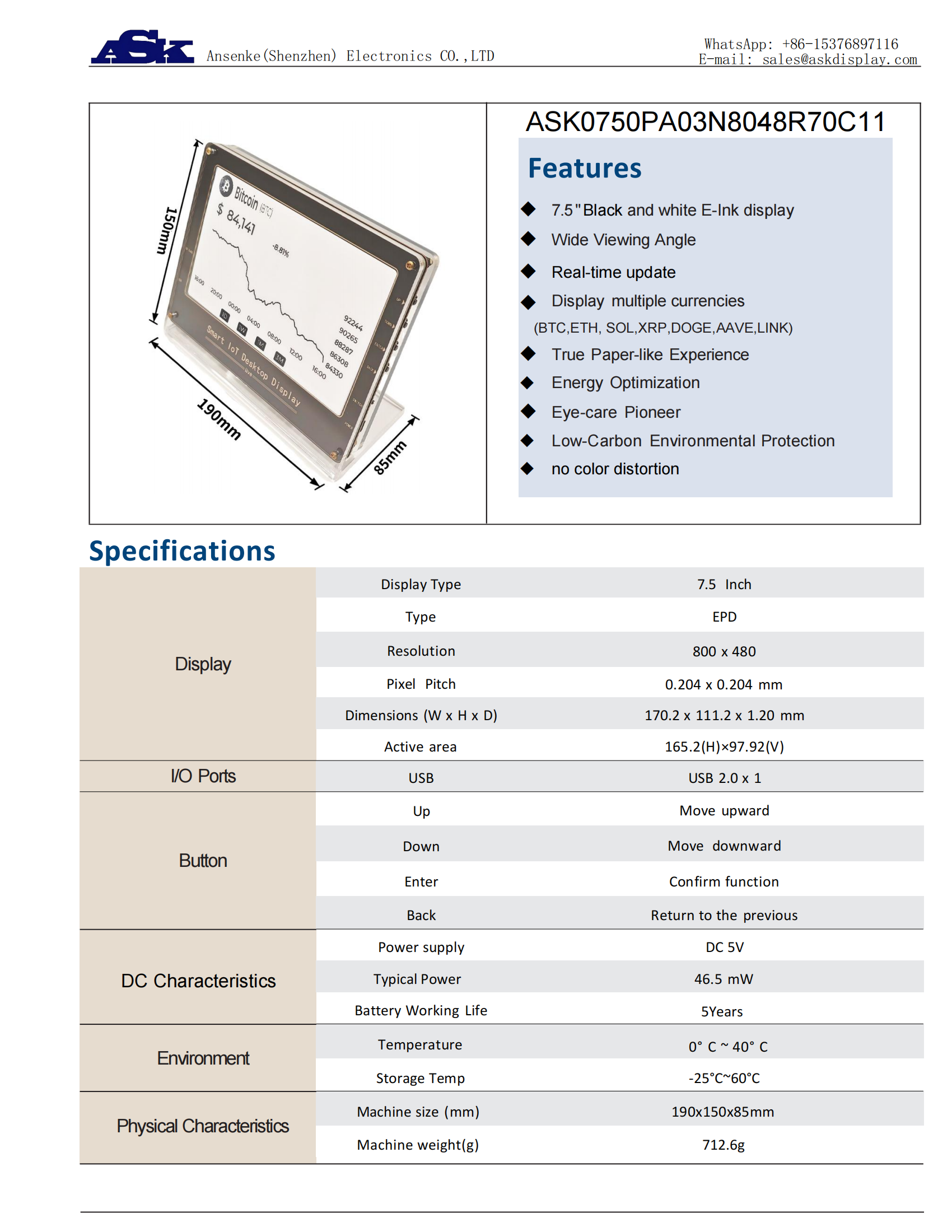

Specifications
DisplayDisplay Type7.5 EPD
TypeEPD
Resolution800x480
Dimensions(WxHxD)170.2x179.9x1.126mm
Activearea163.2(H)×97.92(V)
Pixel Pitch0.204(mm)x0.204(mm)

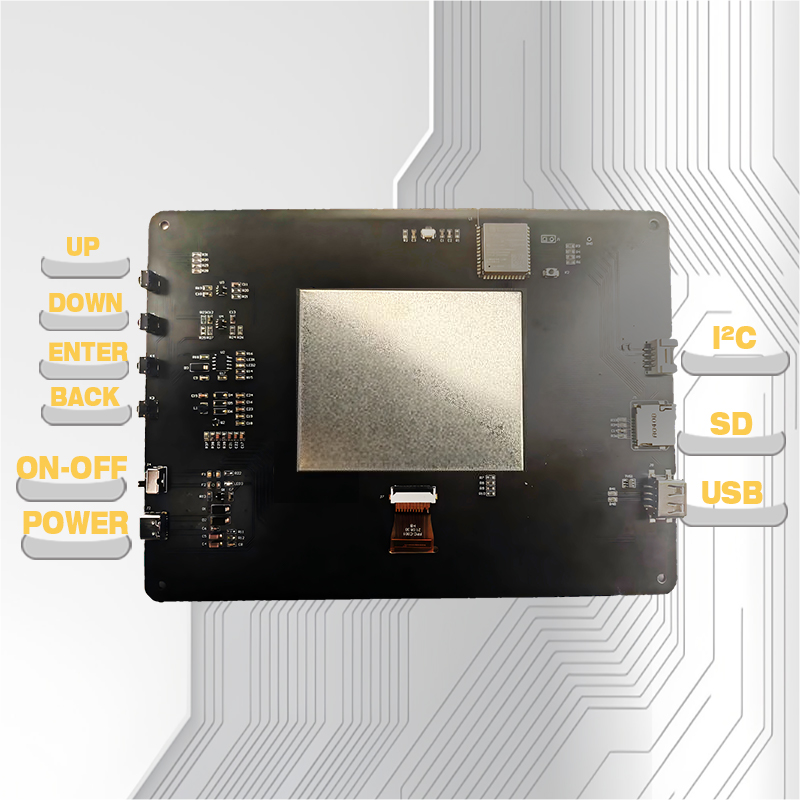

I/O PortsUSBUSB2.0x1
ButtonUpMove upward
DownMove downward
EnterConfirm function
BackReturn to the previous
DC CharacteristicsPower supplyDC 5V
Battery Capacity2500mAh
EnvironmentWorking Temp0°C~50°C
Storage Temp-25℃~60℃

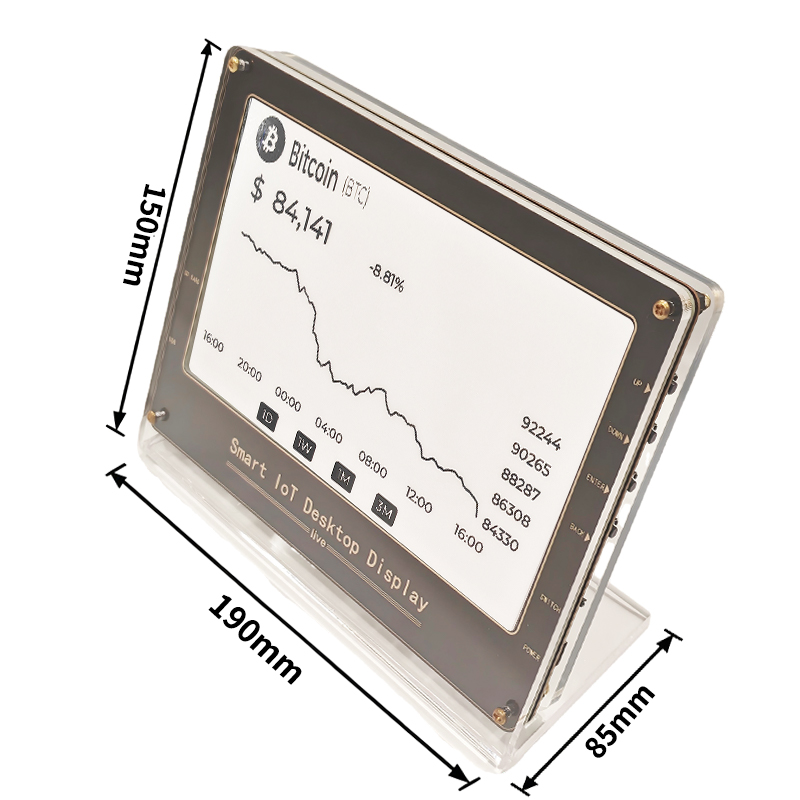

Physical CharacteristicsMachine size(mm)195x150x85mm
Machine weight(g)712.6g
